GO BIG, GO FURTHER
When you want to go that much further into rough terrain, the Woodsy is there for you. With 145mm of ORION Suspension out back and 160mm up front, it is ready for anything the trail throws at you.

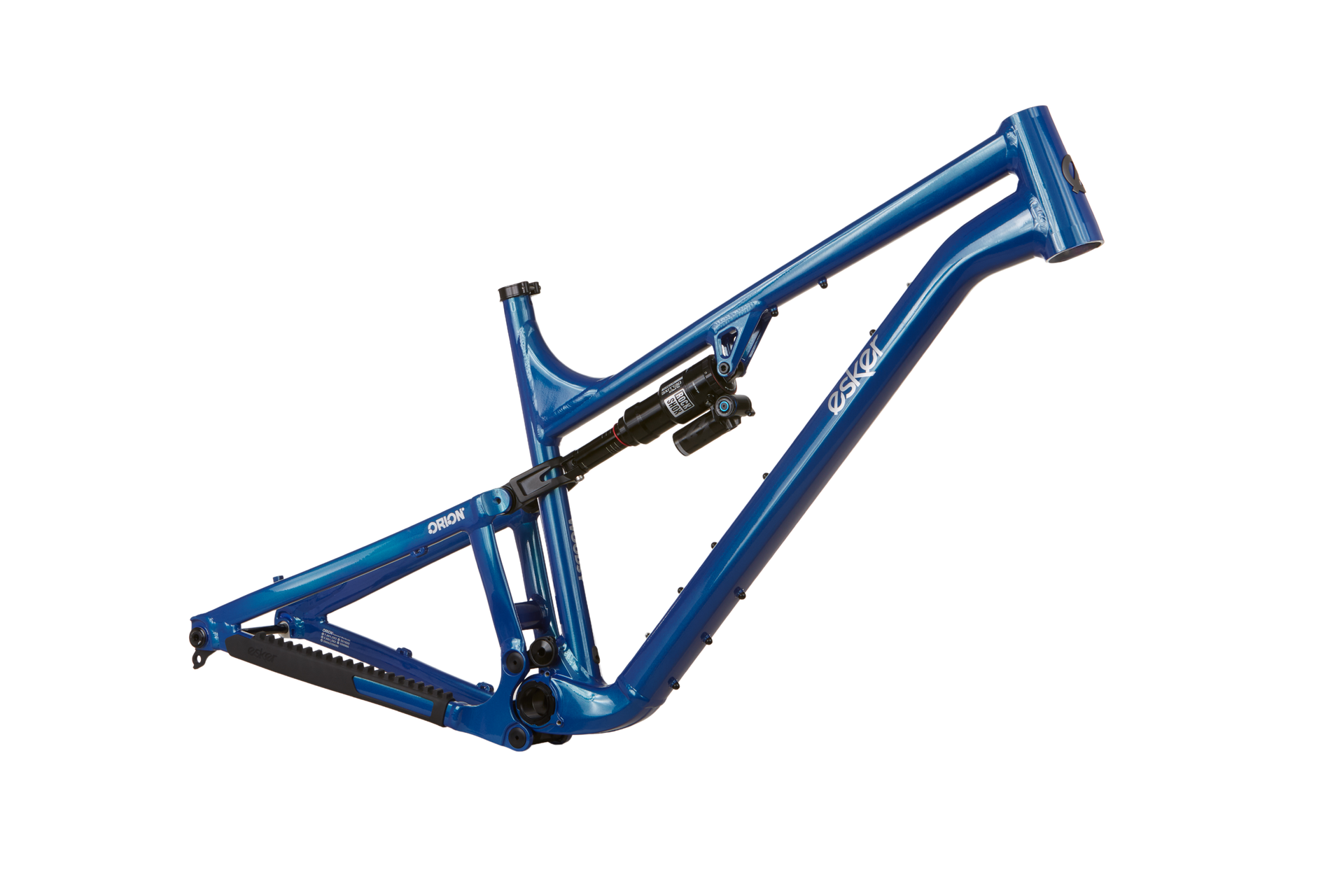

The Woodsy boasts a durable aluminum frame that instills confidence on every ride. The robust bearings of the ORION suspension make for an incredibly smooth and laterally stiff ride. External cable routing offers ease of maintenance. A straightforward metal bike at a good value.
WHAT’S IN A NAME?

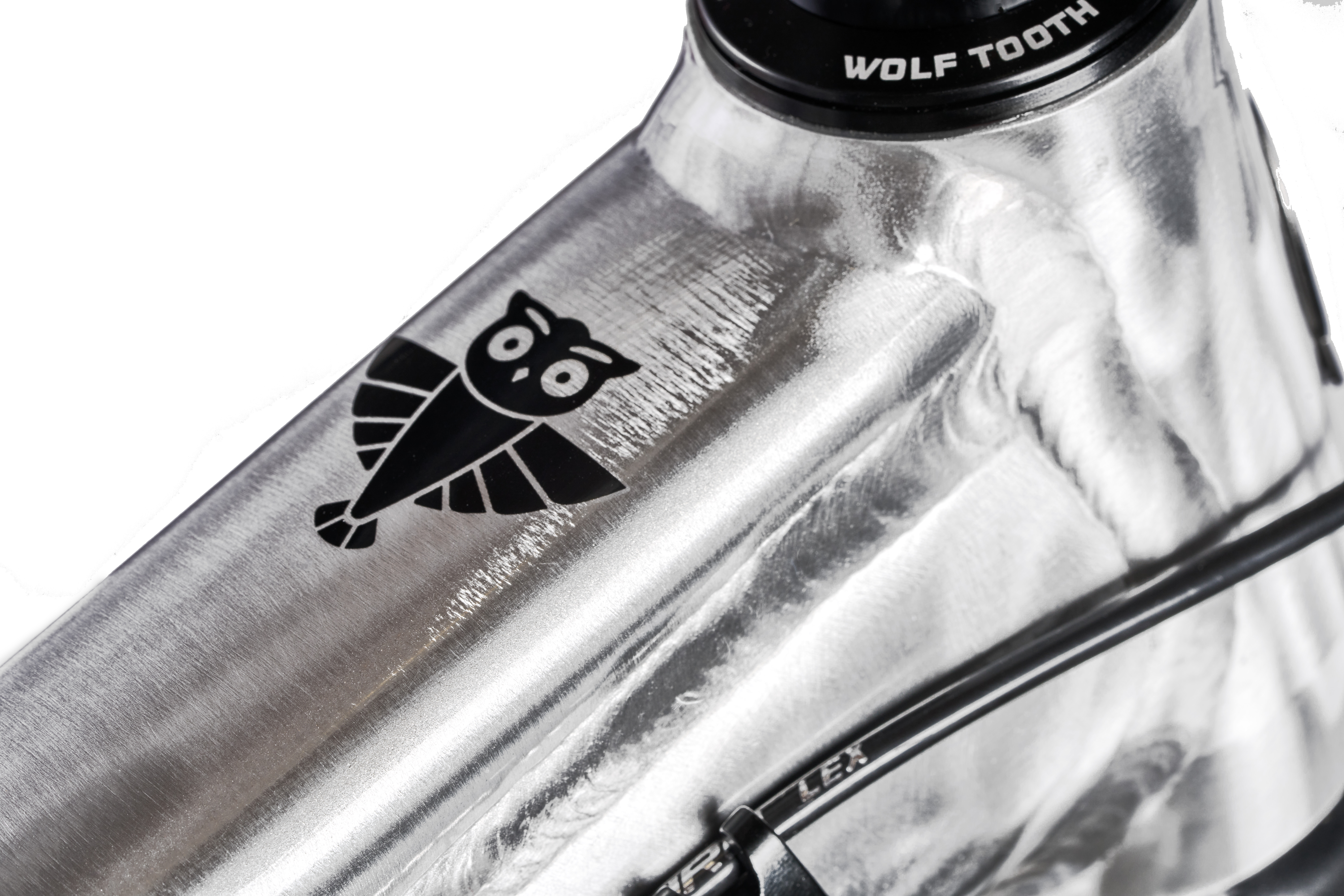

Woodsy is a mascot for the United States Forest Service with the aim of motivating children to form healthy, lasting relationships with nature. Originally created in 1970 as part of a campaign to raise awareness for environmental protection.
Woodsy Owl has been an integral part of the educational program of the US Forest Service for decades and is particularly active against littering and environmental pollution.
Woodsy’s original motto of “Give a hoot! Don’t pollute” has been ingrained in the memories of countless Americans recreating in the forests of the United States.
FEATURE PACKED
29” wheels
Clearance up to a 2.6” tire
145mm rear travel, for 160mm fork
6061-T6 aluminum frame
External cable routing — keep it simple, keep it clean
ORION Suspension — Dave Weagle design, moto meets mountain bike
UDH compatible
| Measurement | S1/SM | S2/MD | S3/LG | S4/XL |
|---|---|---|---|---|
| Effective TT Length | 576 | 610 | 642 | 676 |
| Reach | 441 | 473 | 501 | 531 |
| Stack | 610 | 622 | 646 | 668 |
| HT Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| HT Length | 88.5 | 102 | 129 | 154 |
| Effective ST Angle | 77.5 | 77.5 | 77.5 | 77.5 |
| Estimated Saddle Height for ESTA | 565 | 656 | 745 | 831 |
| ST Length | 375 | 408 | 441 | 474 |
| Max Seat Tube Insertion | 275 | 308 | 341 | 374 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Fork Length | 571 | 571 | 571 | 571 |
| BB Drop | 30 | 30 | 30 | 30 |
| Wheelbase | 1206 | 1244 | 1283 | 1324 |
| Stem Length | 35 | 35 | 35 | 35 |
| Recommended Rider Height | 5'3"-5'7" | 5'6"-5'10" | 5'9"-6'1" | 6'0"-6'4" |
Full Suspension geometry shown at 0% fork sag
Between Sizes? Check out the FAQ below for more information to help you choose what’s right for you.
Curious about fork travel? Frames are approved for forks within +/- 10mm of their original design.
Want more information on the chainstay length and Portage Dropouts? Check out our Portage Dropout Page.
Looking for Standover Height? Check out our thoughts HERE.
| Frame Material | 6061-T6 Aluminum Front and Rear Triangle |
|---|---|
| Frame Weight | 4,263 grams for Medium — includes Frame Hardware, Axle and UDH, Seat Collar, Cable Guides and Bolts; no shock |
| Suspension Specs | Fork: 160mm suspension fork (571mm A-C); forks within +/- 10mm approved. Rear Shock: 145mm travel // 230x60 shock length; 8x22 Forward Shock Mount Hardware. More about ORION Suspension |
| Headset Specs | ZS44 upper // ZS56 lower |
| Rear Dropout | UDH // 148mm Hub Spacing // M12 x 1.0 x 173mm Axle |
| Tire Clearance | Designed around 29x2.5"; accommodates up to 29x2.6". Clearance may vary based on drivetrain choice (chainline), rim width, actual tire measurement and dropout position. |
| Seatpost Specs | 34.9 clamp, 31.6 post, internally routed |
| Bottom Bracket | Threaded 73mm BSA — 2.5mm spacer integrated on the driveside |
| Chainring Specs | Maximum 34t round / 32t oval; 52mm or 55mm chainline |
Q - What size frame should I buy?
See the table below for a complete Esker Cycles model line-up size guide.
NOTE: Many folks can fit more than a single frame size. If you find yourself at a height in which you can fit 2 different frame sizes, ask yourself what your riding style is like and where/how you intend to use the bike. A larger frame will feel more stable at high speeds, but not as maneuverable in tighter and more technical situations on the trail. Inversely, a smaller frame will be less stable at speeds, but allow you to pick up and place your wheels in technical sections of trail much easier.
Q - How many water bottles will the Woodsy carry?
SM/MD/LG/XL = 1 bottle in the front triangle, 1 bottle under the downtube.
Q - Do you do custom builds?
We do not. We offer a limited menu of upgrade options for all of our bikes, but we do not do custom builds.
If you'd like to have a custom Esker built up, please reach out to one of our Retail Partners and they'll work with you on getting you exactly what you want!
Q - What does your warranty look like?
Click here for warranty information
Q - Can I order one of your frames/bikes through a local bike shop?
Absolutely. That would be the best way to order one of our frames/bikes! Working with your local bike shop allows you to get great insight on which model is right for you, which size may work best for your intended use, and ensure that your bike gets built up and fit to your exact specifications. Jump on over to our Dealer Locator to see a full map of our retail partners and find the one closest to you.
Q - Can I demo a bike before I buy it?
We do our best to travel around throughout the year and often partner with regional mountain bike festivals or local retail partners to host demos. For the most up to date opportunities, check our Dealer Locator. You can also see a full map of our retail partners - reach out to them if you're nearby and ask them what they may have available for you to demo locally.
Q - I want to buy a frame bag before my bike/frame arrives to me, can you provide the frame bag dimensions?
We don't recommend buying a frame bag until you have your frame/bike on hand. That is absolute best way to ensure you get the right size and shape for your bike.
If you're looking to make a custom bag(s) for your Esker, we've partnered with some incredible custom frame bag makers that all have our frame dimensions and files on hand. Please reach out to one of them HERE.
