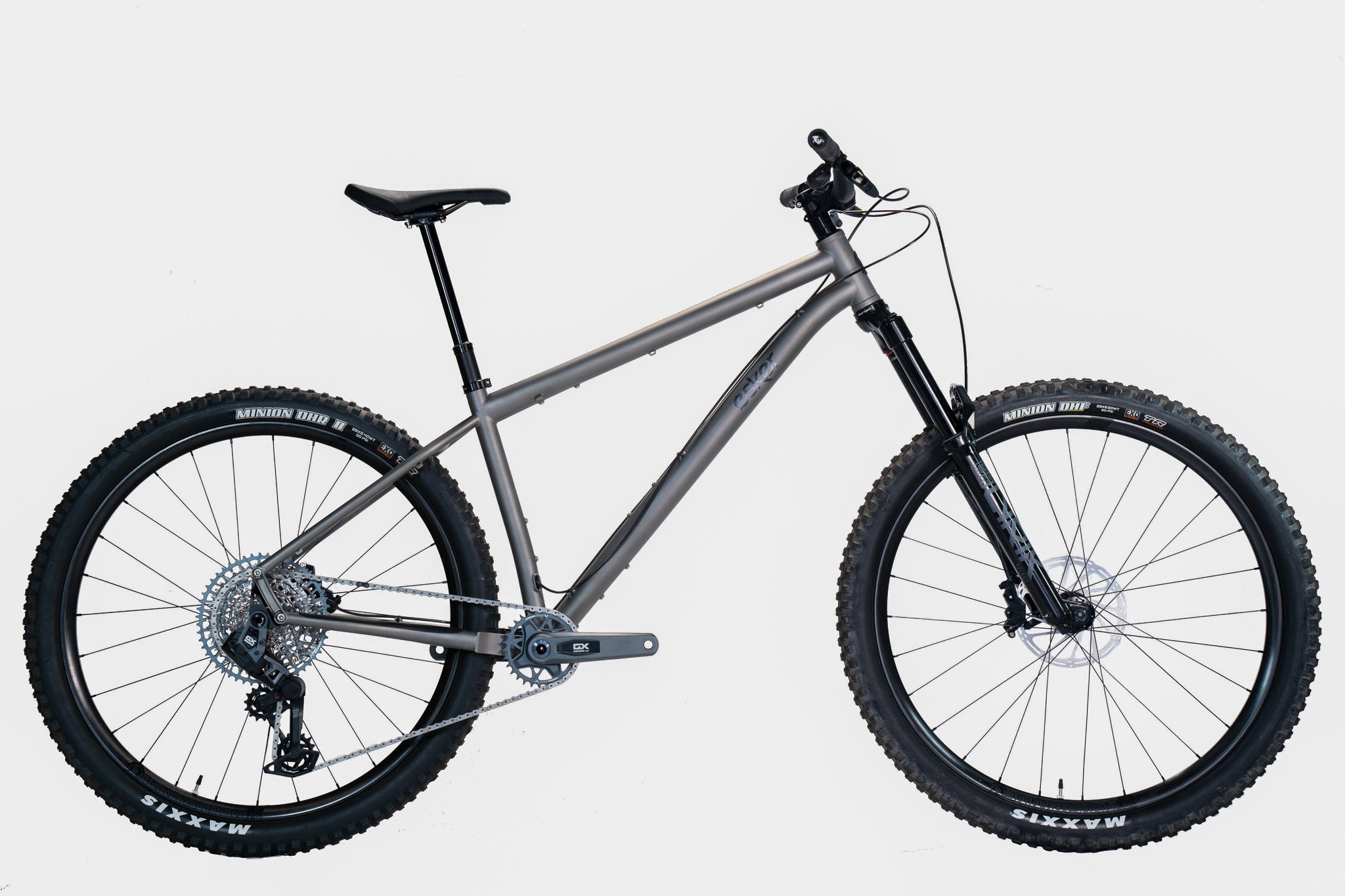

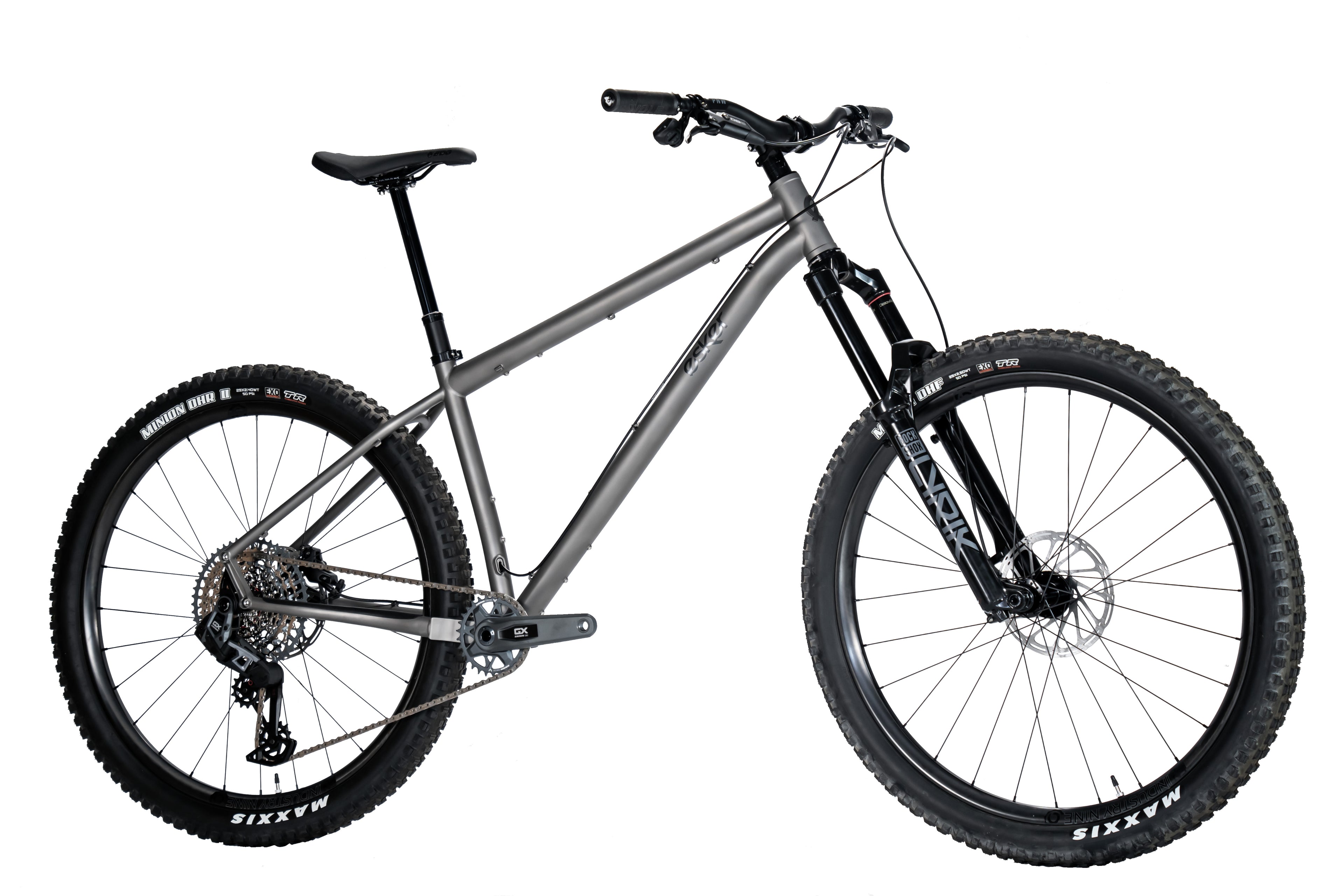

2025 Smokey Ti Complete

$4,950.00 USD

Shipping calculated at checkout.

MSRP above includes 10% Tariff Surcharge

CLICK HERE FOR MORE INFO

Garage Sale Items ship in 10 business days.

Small Parts and Goods ship ASAP.

All other in stock frames and complete builds ship within 8 weeks of their order date.

CLICK HERE for more information about shipping and leadtimes.

CLICK HERE to find an Esker Retail Partner near you!

CLICK HERE for information about Esker's 1,000,000 mile warranty

Complete Build Spec // UPGRADE OPTIONS

	Complete Base Spec	Upgrade Options
Fork	Rockshox LYRIK Select // 160mm // 44mm offset // Black	Rockshox LYRIK Ultimate: 160mm travel // 44mm offset - Black Ohlins RFX36 M.3: 160mm travel // 44mm offset - Black
Headset	ZS44/EC44 - Black Spacers = 30mm	Wolf Tooth Premium Headset - See drop-down for available color options Includes color matching seatpost clamp
Cockpit	Stem: Alloy // 35mm clamp // 35mm length Handlebar: PNW Range Alloy // 38mm rise // 800mm wide Grips: PNW Loam Saddle: Ergon SMC Sport Gel Saddle // M/L Dropper & Lever: PNW Loam Dropper // Range Lever SM: 150mm - adjustable to 125mm M/L/XL: 170mm - adjustable to 145mm	PNW Loam + Carbon: Industry Nine A35 Stem PNW Loam Carbon Handlebar PNW Loam Grips PNW Loam Dropper PNW Loam Lever Ergon SMC Sport Gel Saddle // M/L PNW Carbon + SRAM AXS: Industry Nine A35 Stem PNW Loam Carbon Handlebar PNW Loam Grips SRAM Reverb AXS Rockshox AXS Controler Ergon SMC Sport Gel Saddle // M/L
Brakes	SRAM DB8 Stealth - 4-piston - Mineral Oil Centerline 200mm Front/180mm Rear Rotors	SRAM MOTIV SLV with Centerline 200/180 Rotors Shimano XT M8210 with 203/180 RT-86 IceTech Rotors SRAM MAVEN SLV with 200/180 HS2 Rotors
Drivetrain	SRAM Eagle 90 Transmission 30T Chainring // 10-52 Cassette 170mm Crank	Shimano M8100 XT 12-Speed: 170mm Crank // 30T Chainring // 10-51T SRAM GX Transmission: 170mm Crank // 30T Chainring // 10-52T SRAM X0 Transmission: 170mm Crank // 30T Chainring // 10-52T
Wheels	Stans Flow S2 Comp 29 - Tubeless Tape and Valves Installed	Industry Nine 1/1 Enduro S Alloy - Black Industry Nine Hydra 2 Enduro S Carbon - Black BERD HAWK30 Talon - 54T Ratchet - Centerlock - All Black
Tires	Front: Maxxis Assegai EXO+ - 29x2.5" Rear: Maxxis Dissector EXO+ - 29x2.4

*Build Specs are subject to change - so is life, take it easy out there*

Geometry

	S1/SM	S2/MD	S3/LG	S4/XL
Effective TT Length	571	608	639	679
Reach	441	473	501	531
Stack	612	622	646	688
HT Angle	64.5*	64.5*	64.5*	64.5*
HT Length	90	100	127	174
Effective ST Angle	77*	77*	77*	77*
ST Length	375	410	440	475
Max Seat Tube Insertion	-	-	-	-
Chainstay Length	440-454	440-454	440-454	440-454
Fork Offset	44	44	44	44
Fork Length	530	530	530	530
BB Drop	60	60	60	60
Wheelbase (Forward Position)	1178	1217	1254	1304
Stem Length	35	35	35	35
Recommended Rider Height	5'3"-5'7"	5'6"-5'10"	5'9"-6'1"	6'0"-6'4"

Hardtail geometry based on 30% fork sag

Between Sizes? Check out the FAQ below for more information to help you choose whats right for you.

Curious about fork travel? Frames are approved for forks within +/- 10mm of their original design.

Want more information on the chainstay length and Portage Dropouts? Check out our Portage Dropout Page

Looking for Standover Height? - Check out our thoughts HERE

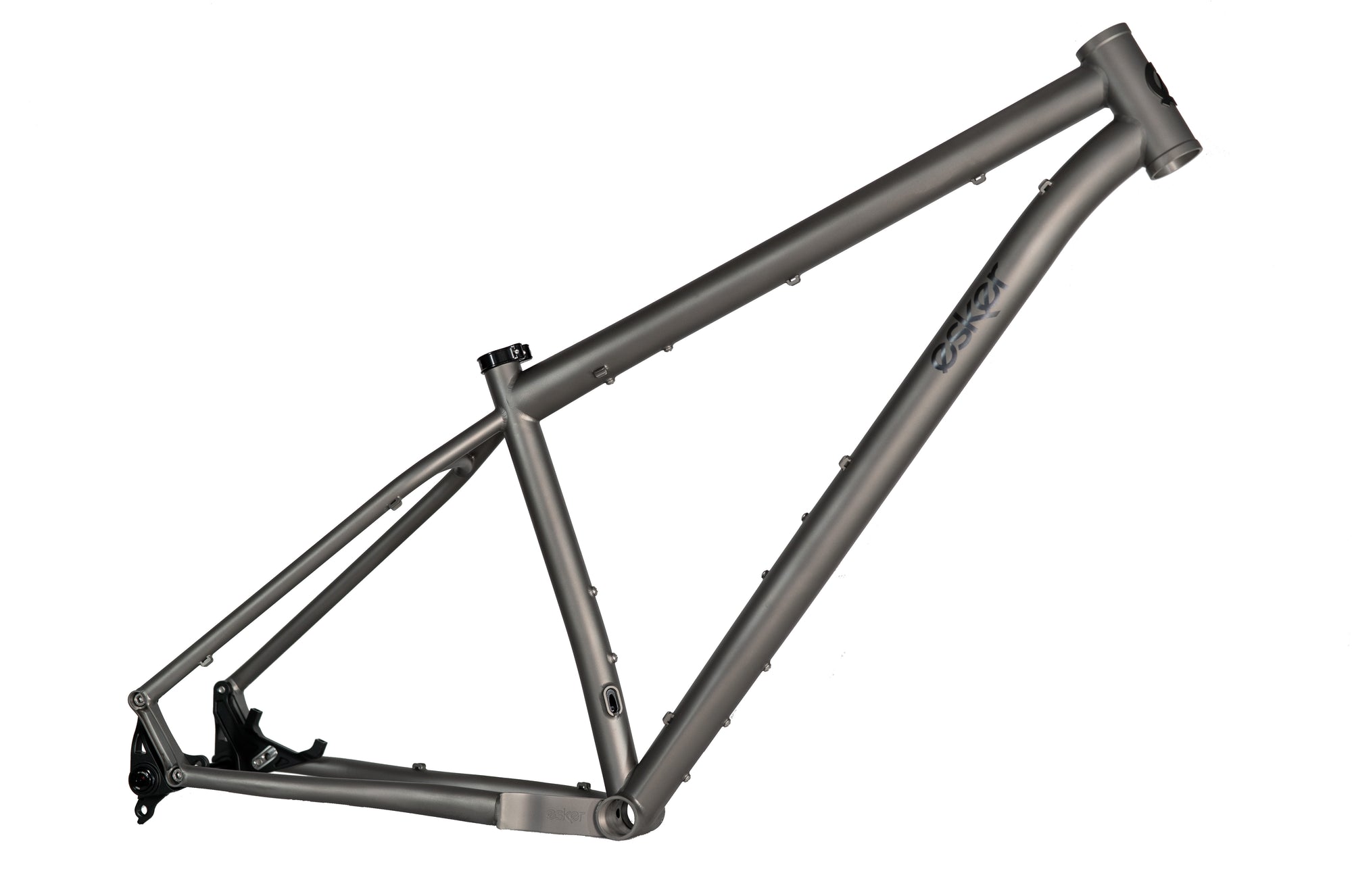

Frame Specs


Frame Material	Seamless, Butted and Cold-Shaped 3/2.5 Titanium
Frame Weight	X,XXX grams for Medium - Weight includes dropouts, UDH, axle, seat collar, and cable guides
Recomended Fork Travel	160mm suspension fork at 30% sag (530mm A-C) - Forks within +/- 10mm approved
Headset Specs	ZS44 upper // EC44 lower
Rear Dropout	Esker Portage Dropout - Adjustable - UDH // 148mm Hub Spacing // M12 x 1.0 x 180mm Axle
Tire Clearance	Designed around 29x2.6" Accommodates up to 29x2.8" Clearance may vary based on your drivetrain choice (Chainline), rim width, actual tire measurement, and dropout position
Seatpost Specs	34.9 clamp, 31.6 post, internally routed
Bottom Bracket	Threaded 73mm BSA
Chainring Specs	Maximum = 34t round / 32t oval 52mm or 55mm Chainline

SMOKEY FAQ

Q - What size frame should I buy?

See the table below for a complete Esker Cycles model line-up size guide
NOTE: Many folks can fit more than a single frame size. If you find yourself at a height in which you can fit 2 different frame sizes, ask yourself what your riding style is like and where/how you intend to use the bike. A larger frame will feel more stable at high speeds, but not as maneuverable in tighter and more technical situations on the trail. Inversely, a smaller frame will be less stable at speeds, but allow you to pick up and place your wheels in technical sections of trail much easier.

Q - How many water bottles will the Smokey carry?

SM = 1 bottle in the front triangle, 1 bottle under the downtube.
MD/LG/XL = 2 bottles in the front triangle, 1 bottle under the down tube.

Q - Can I put a rear rack on the Smokey?

Sure Thing! While our Hayduke model has dedicated rack mounts built into the frame, the Smokey can still utilize a rear rack by installing our Portage Rack Mount Bolts and a Seatpost Clamp with Rack Mounts.

Q - Can I single-speed the Smokey?

You betcha! Our Portage Dropout System allows you to adjust the chainstay length by up to 14mm, allowing you to run a single speed setup reliably, quietly, and with ease. Heck, we even have a single speed build option that you can buy!

Q - Can I run an internally geared hub on the Smoky?

Technically, yes, but we don't offer any support on figuring out which hubs and support parts may be needed in order to make this happen. Have fun!

Q - Do you do custom builds?

We do not. We offer a limited menu of upgrade options for all of our bikes, but we do not do custom builds.
If you'd like to have a custom Esker built up, please reach out to one of our Retail Partners and they'll work with you on getting you exactly what you want!

Q - What does your warranty look like?

- Click here for warranty information

Q - Can I order one of your frames/bikes through a local bike shop?

Absolutely. That would be the best way to order one of our frames/bikes! Working with your local bike shop allows you to get great insight on which model is right for you, which size may work best for your intended use, and ensure that your bike gets built up and fit to your exact specifications. Jump on over to our Dealer Locator to see a full map of our retail partners and find the one closest to you.

Q - Can I demo a bike before I buy it?

We do our best to travel around throughout the year and often partner with regional mountain bike festivals or local retail partners to host demos. For the most up to date opportunities, check our Dealer Locator. You can also see a full map of our retail partners - reach out to them if you're nearby and ask them what they may have available for you to demo locally.

Q - I want to buy a frame bag before my bike/frame arrives to me, can you provide the frame bag dimensions?

We don't recommend buying a frame bag until you have your frame/bike on hand. That is absolute best way to ensure you get the right size and shape for your bike.
If you're looking to make a custom bag(s) for your Esker, we've partnered with some incredible custom frame bag makers that all have our frame dimensions and files on hand. Please reach out to one of them HERE.

BUILT FOR THE BACKCOUNTRY

We here at Esker enjoy long rides into the wild spaces and are proud to say our bikes are truly Built for the Backcountry. That means they are designed and built on three values:

REFINED GEOMETRY:

Specific geometry to suit the riders needs for each different model, we have designed and developed a quick and responsive ride quality for all Esker models.

Our geometries are refined, stable, and comfortable to provide a bike that always feels right at home.

DURABILITY:

We build our bicycles with the highest quality metal tubing for the utmost in durability.

Each tubeset provides a greater strength to weight ratio than other frames on the market and engineered specifically for its application. Every Esker frame is tested to our own internal standard far exceeding ISO 4210, for a true lifetime of constant use.

Esker will get you into the backcountry as far as you want to go, but it will also get you back!

RIDE QUALITY:

Not too flexy, not too stiff…but just right! We are riders, and design our bikes by riding them, constantly, to refine the perfect feel.

We toil over every model to ensure the ride simply feels right and comfortable, like your favorite hoody.
