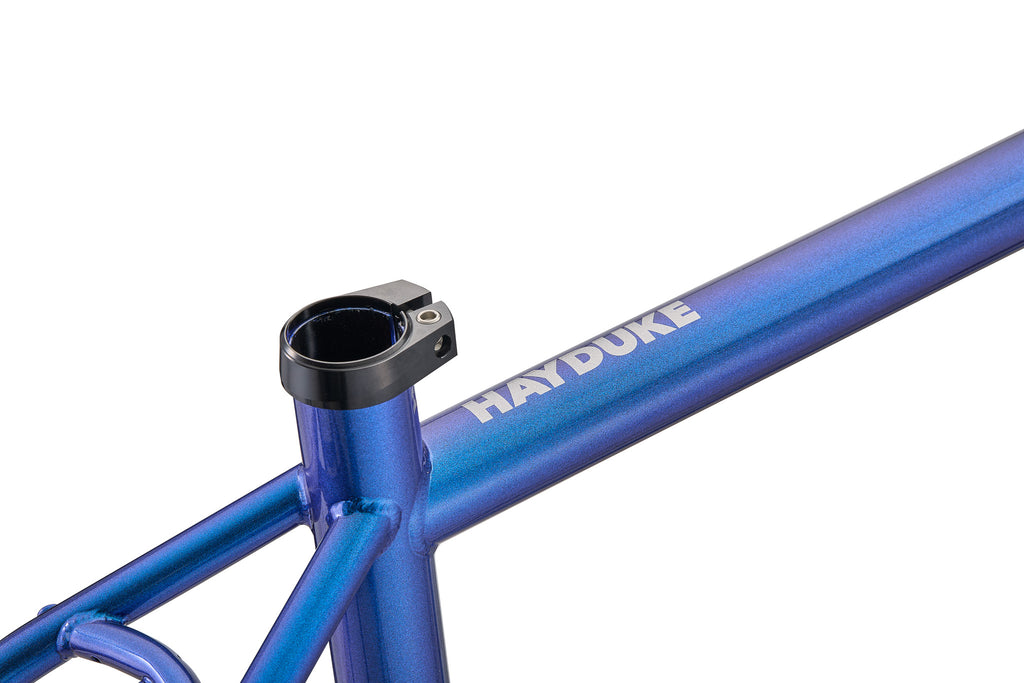

2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame
2025 Hayduke Frame

2025 Hayduke Frame

Regular price €893,95

Updated Features for 2025

Updated Features:

  • Simplified sizing range:  SM, MD, LG, XL

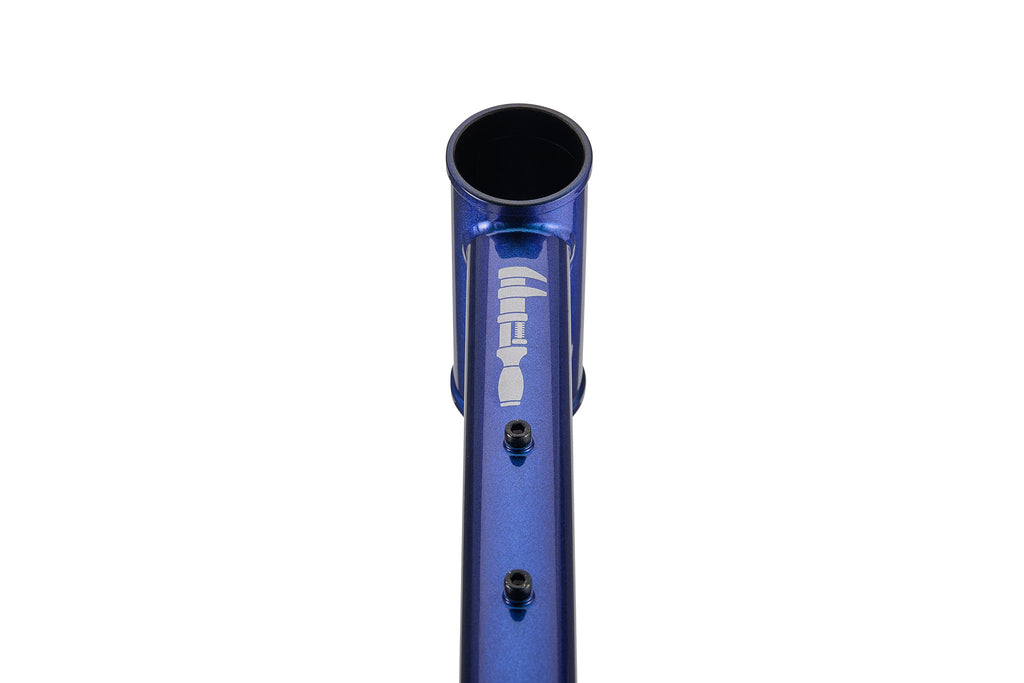

  • Top Tube Bolts:  Snacks…we want you to carry all of the snacks

  • Updated Geo:  Longer wheelbase, Lower center of gravity (increased BB Drop), taller stack

  • Increased Tire Clearance: Clearance for up to a 29x3.0 tire (clearance may vary by your drivetrain choice (dat chainline), rim width, dropout position and actual tire measurement)

  • Improved Heel Clearance:  Not by heaps…but we tried to scooch things in a bit

  • Mid-Mount Rack Mounts:  Rack mounts in the middle of the Seatstay

  • Optimized Dropper Port Location:  To ease cable routing

  • Custom Chainstay Protector:  Its protection for your chainstay…and its custom

UPGRADE Options

Fork

Rockshox PIKE Select: 120mm travel // 44mm offset - Black

Rockshox SID Select: 120mm travel // 44mm offset - Black

Rockshox PIKE Ultimate: 120mm travel // 44mm offset - Black

Rockshox SID Ultimate: 120mm travel // 44mm offset - Black

Headset

Wolf Tooth Premium Headset - See drop-down for available color options

*Includes color matching seatpost clamp*

Geometry

S1/SM S2/MD S3/LG S4/XL

Effective TT Length

597

626

649

683

Reach

420

450

470

500

Stack

615

620

630

645

HT Angle

67.5*

67.5*

67.5*

67.5*

HT Length

105

110

120

140

Effective ST Angle

74*

74*

74*

74*

ST Length

380

435

485

530

Max Seat Tube Insertion

-

-

-

-

Chainstay Length - Adjustable

440-454

440-454

440-454

440-454

Fork Offset

44

44

44

44

Fork Length

495

495

495

495

BB Drop

65

65

65

65

Wheelbase

1130

1160

1183

1218

Stem Length

50

50

50

50

Recommended Rider Height

5'3"-5'7"

5'6"-5'10"

5'9"-6'1"

6'0"-6'4"

*Hardtail geometry based on 30% fork sag*

For more information about chainstay length and our Portage Dropout System go to our Portage Dropout Page

Frame Specs

Frame Material

Custom seamless, quadruple-butted, tapered, Drawn Over Mandrel, size-specific, ED Coated, 4130 Chromoly

Frame Weight

X,XXX grams for Medium - Weight includes dropouts, UDH, axle, seat collar, and cable guides

Recomended Fork Travel

120mm suspension fork at 30% sag (495mm A-C) - Forks within +/- 10mm approved

Headset Specs

ZS44 upper // EC44 lower

Rear Dropout

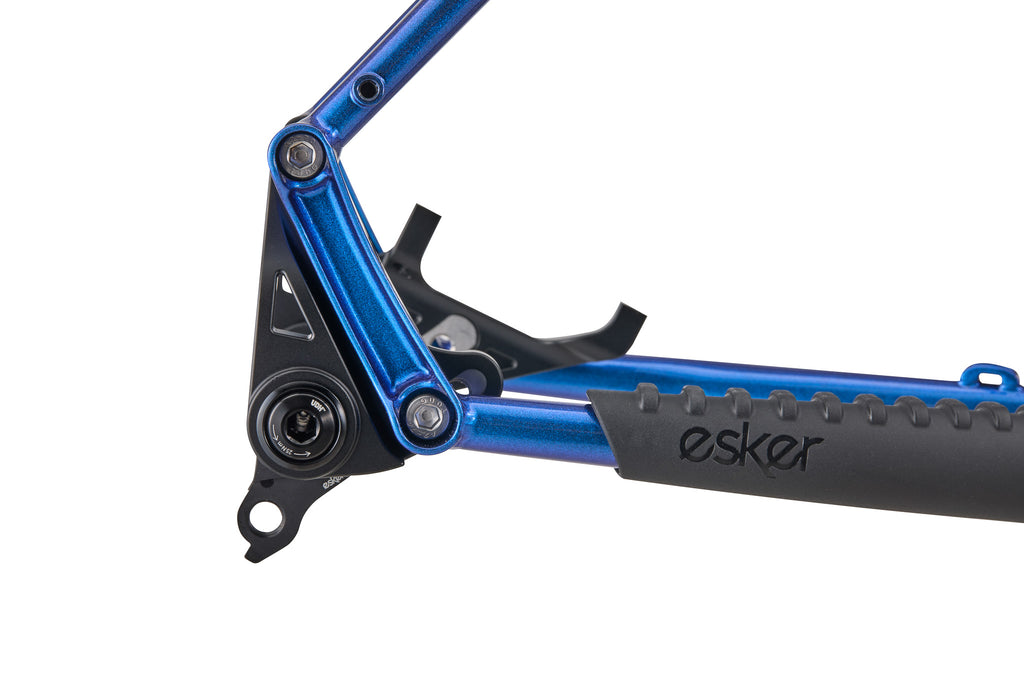

Esker Portage Dropout - Adjustable - UDH // 148mm Hub Spacing // M12 x 1.0 x 180mm Axle

Tire Clearance

Designed around 29x2.6" Accomodates up to 29x3.0"

*Clearance may vary based on your drivetrain choice (Chainline), rim width, actual tire measurement, and dropout position*

Seatpost Specs

34.9 clamp, 31.6 post, internally routed

Bottom Bracket

Threaded 73mm BSA

Chainring Specs

Maximum = 34t round / 32t oval

52mm or 55mm Chainline

Hayduke FAQ



  • Q - What size frame should I buy? See the table below for a complete Esker Cycles model line-up size guide
    • NOTE: Many folks can fit more than a single frame size. If you find yourself at a height in which you can fit 2 different frame sizes, ask yourself what your riding style is like and where/how you intend to use the bike. A larger frame will feel more stable at high speeds, but not as maneuverable in tighter and more technical situations on the trail. Inversely, a smaller frame will be less stable at speeds, but allow you to pick up and place your wheels in technical sections of trail much easier.



Q - Should I get a Hayduke or a Japhy?

  • How do you ride?
    • The Japhy is an everything trail bike - its your night ride bike, its your durable hardtail, and it can even do an overnighter once in while. The geometry is designed to be a bit more stable at high speeds, wheelie and bunnyhop easier, and lower your center of gravity by not only using a smaller front triangle and lower standover height, but a lower bottom bracket to get your feet a little closer to the ground. It also has a steeper seat tube angle than the Hayduke, making it much more enjoyable for seated climbs, and a little less forgiving on flatter, more pedaling based rides.
    • The Hayduke is a more dedicated bikepacking bike made to take more gear. It has more front triangle space, more neutral geometry for hauling a load, and more places to mount gear. It also has a more relaxed seat tube angle than the Japhy, which makes it more comfortable for flatter, more pedaling based rides.
      • If you carry gear 10% of the time, and mostly just want an awesome riding hardtail that you can depend on, get the Japhy. If you carry gear more than 50% of the time, and wanted a more dedicated bike for that purpose, get the Hayduke.

Q - How many water bottles will the Hayduke carry?

  • SM = 1 bottle in the front traingle, 1 bottle under the down tube
  • MD/LG/XL = 2 bottles in the front traingle, 1 bottle under the down tube

Q - Can I put a rear rack on the Hayduke?

Q - Can I single-speed the Hayduke?

  • You betcha! Our Portage Dropout System allows you to adjust the chainstay length by up to 14mm, allowing you to run a single speed setup reliably, quietly, and with ease. Heck, we even have a single speed build option that you can buy!

Q - Can I run an internally geared hub on the Hayduke?

  • Technically, yes, but we recommend working with your favorite professional mechanic to figure out which hubs and support parts may be needed. Have fun!

Q - Do you do custom builds?

  • We do not. We offer a limited menu of upgrade options for all of our bikes, but we do not do custom builds.
  • If you'd like to have a custom Esker built up, please reach out to one of our Retail Partners and they'll work with you on getting you exactly what you want!

Q - Do your steel frames ride different than your Titanium frames?

  • Yes and No. Based on our own riding input, as well as a ton of great input and feedback from our customers, find that our steel frames have a very similar feel when it comes to compliance on the trail in comparison with our Titanium frames. The biggest difference that most individuals feel is the weight savings of Titanium. Our Titanium frames are around 650-900grams lighter than their steel counterparts. This weight savings results in a 'snappier' and more 'lively' riding characteristic when on the trail.

Q - Do I need to 'Frame-Saver' your steel frames after I buy one?

  • NOPE! We treat all of our steel frames with an Electrophoretic Deposition (ED) coating inside and out prior to painting them for rust protection.

Q - What does your warranty look like?

Q - Can I order one of your frames/bikes through a local bike shop?

  • Absolutely. That would be the best way to order one of our frames/bikes! Working with your local bike shop allows you to get great insight on which model is right for you, which size may work best for your intended use, and ensure that your bike gets built up and fit to your exact specifications. Jump on over to our Dealer Locator to see a full map of our retail partners and find the one closest to you.

Q - Can I demo a bike before I buy it?

  • We do our best to travel around throughout the year and often partner with regional mountain bike festivals or local retail partners to host demos. For the most up to date opportunities, check our Dealer Locator.  You can also see a full map of our retail partners - reach out to them if you're near by and ask them what they may have available for you to demo locally.

Q - I want to buy a frame bag before my bike/frame arrives to me, can you provide the frame bag dimensions for the Hayduke?

  • We don't recommend buying a frame bag until you have your frame/bike on hand. That is absolute best way to ensure you get the right size and shape for your bike.
  • If you're looking to make a custom bag(s) for your Esker, we've partnered with some incredible custom frame bag makers that all have our frame dimensions and files on hand. Please reach out to one of the following frame bag makers to get the exact bags made for your bike that you want!
